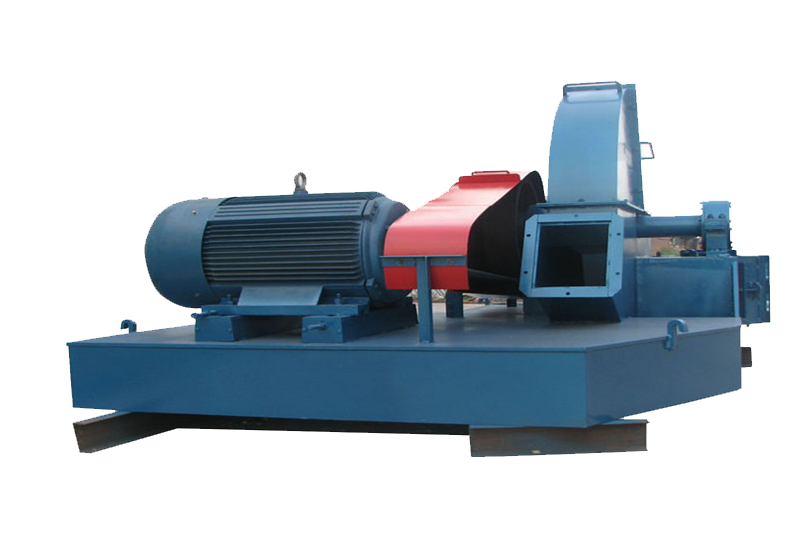

本机具有结构紧凑合理、易操作、生产能力高、产品质量好、安全可靠、维修方便等优点。该系列的圆盘式木片机有两种输入送料方式,一种是水平送料,另一种是斜送料。输出是可以上部输出或下部输出。
1. 木片机的刀等破碎部分均采用特殊材料制成,使用寿命长
2. 结构紧凑,操作合理,生产能力强,产品质量高,安全可靠,维修方便。
3. 生产尺寸可以调节
4. 可以根据客户要求制作
型号 model | UWP680 | UWP850 | UWP1000 | UWP1150 | UWP1300 | UWP1600 |
刀盘直径(mm) Disk diameter | 680 | 850 | 1000 | 1150 | 1300 | 1600 |
进料口尺寸(mm) Input feeding size | 150*150 | 200*200 | 230*230 | 270*270 | 350*350 | 420*420 |
木片长度(mm) Chipped size | 15--35 | 15--35 | 15--35 | 15--35 | 15--35 | 15--35 |
喂料方式 feeding | Inclined/ horizontal | Inclined/ horizontal | Inclined/ horizontal | Inclined/ horizontal | Inclined/ horizontal | Inclined/ horizontal |
出料方式 Output | Upper/ bottom | Upper/ bottom | Upper/ bottom | Upper/ bottom | Upper/ bottom | Upper/ bottom |
生产能力(m3/h) Capacity | 2-5 | 3-5 | 8-10 | 10-15 | 10-15 | 20-25 |
主电机功率(kw) Power | 22 | 30/45 | 55 | 55 | 75-90 | 110-132 |
1. 关于产品规格可以根据用户的具体要求来选择。
2. 容量受物料成分影响。
以上规格仅供参考,如有更改,恕不另行通知,请在订购时与我们的销售代表确认。
